£988.00
DVS Anti-Ligature High Risk Wall-Hung Toilet & Basin Pack - Programmable Wave-On Controls
P/N: Dart Valley Systems ESPACK2-TB-PIR
Complete anti-ligature wall-hung toilet and basin pack, with programmable no-touch wave-on infrared controls.
This high security DVS washroom pack is robust, vandal resistant, and has excellent impact resistance. The components have been designed without ligature points where possible, and can be used in the toughest environments, suitable for mental healthcare, healthcare and custodial installation.
This wave-on sensor pack is configured and maintained using DVS' handheld programmer - this device allows you to set-up the run-time, purge settings and more on each of the sensors, without the need for a separate control box. The sensors are powered using included mains powered kits.
The toilet and basin are made from high-performance composites, with rear inlets and outlets for use with concealed components.

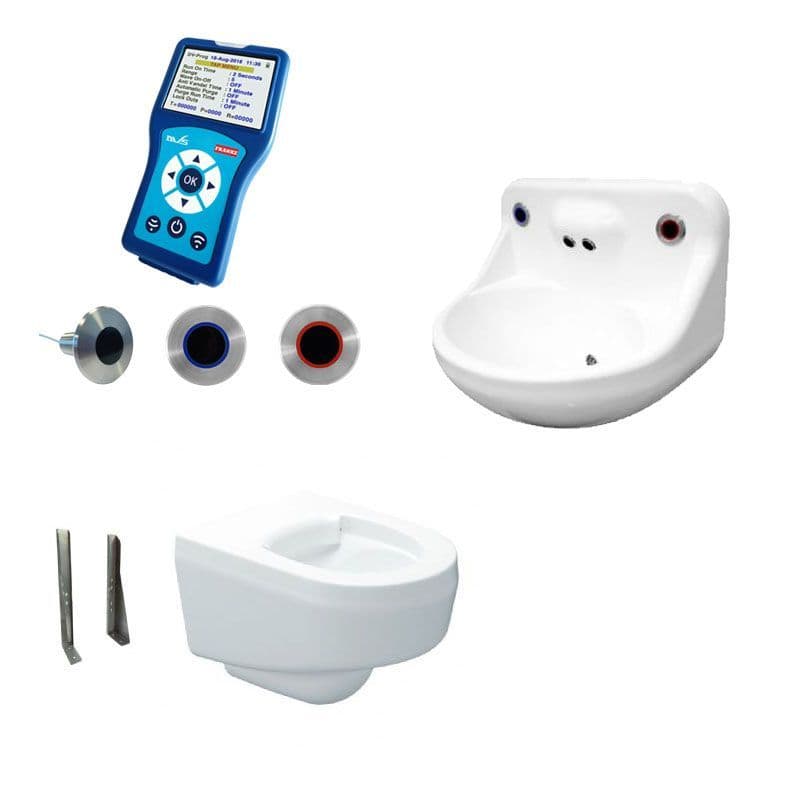

This complete DVS anti-ligature washroom solution includes;
- High Security Wall-Hung WC Pan
+ concealed cistern and flush valve - High Security Basin with Integral Backplate
+ thermostatic mixing valve - Complete Programmable Wave-On Sensor Kit
- DVS Handheld Programmer
-4299-dv-p.jpg?v=8f4e2e4e-5581-4e9d-8f05-e63d37b4e28c)
-4299-dv-p.jpg?v=8f4e2e4e-5581-4e9d-8f05-e63d37b4e28c)
-4299-dv-p.jpg?v=8f4e2e4e-5581-4e9d-8f05-e63d37b4e28c)
Selected Configuration
This product is HTM64/HBN 00-10 compliant for sanitary assemblies
This product has been WRAS Approved for use in public facilities
This product complies with TMV3 standards
This product has a BREEAM water efficiency rating
This product is made in the United Kingdom
Our Price exc VAT:
£3,468.13
Our Price inc VAT:
£4,161.76
Please click the Components tab below for more information on these options
Product Code: ESPACK2-TB-PIR5 Year Warranty
In Stock
Usually In Stock
Delivered within
5 Working Days
5 Working Days
In Stock
Delivered within
5 Working Days
5 Working Days
Manufactured to Order
Delivered within
5 Working Days
5 Working Days
Out of Stock
Please contact us for availability
UK Mainland Delivery from
£20 +VAT
£20 +VAT
Delivery costs calculated based on number of products ordered
This product qualifies for
Free UK Delivery
UK Mainland Only
Free UK Delivery
UK Mainland Only
Can't find what you're looking for?
Our website only features the most popular models available, however we supply a much larger range of products than it is possible to show on the website.
CALL
Office Hours
Monday-Friday 8am-6pm
- RELATED PRODUCTS
- Pack Components
- Line Drawing
- Downloads
This DVS anti-ligature pack is comprised of the following DVS components;
Toilet
| VR01-017 High Security Wall-Hung WC Pan |
Wall-mounted with concealed rear outlet |
| VR01-018 Supporting Wall Brackets |
|
| WC02-014 Concealed Plastic Tall Cistern |
Basin
| VR01-030 High Security Basin with Integrated Backplate |
Dual spout with concealed rear outlet |

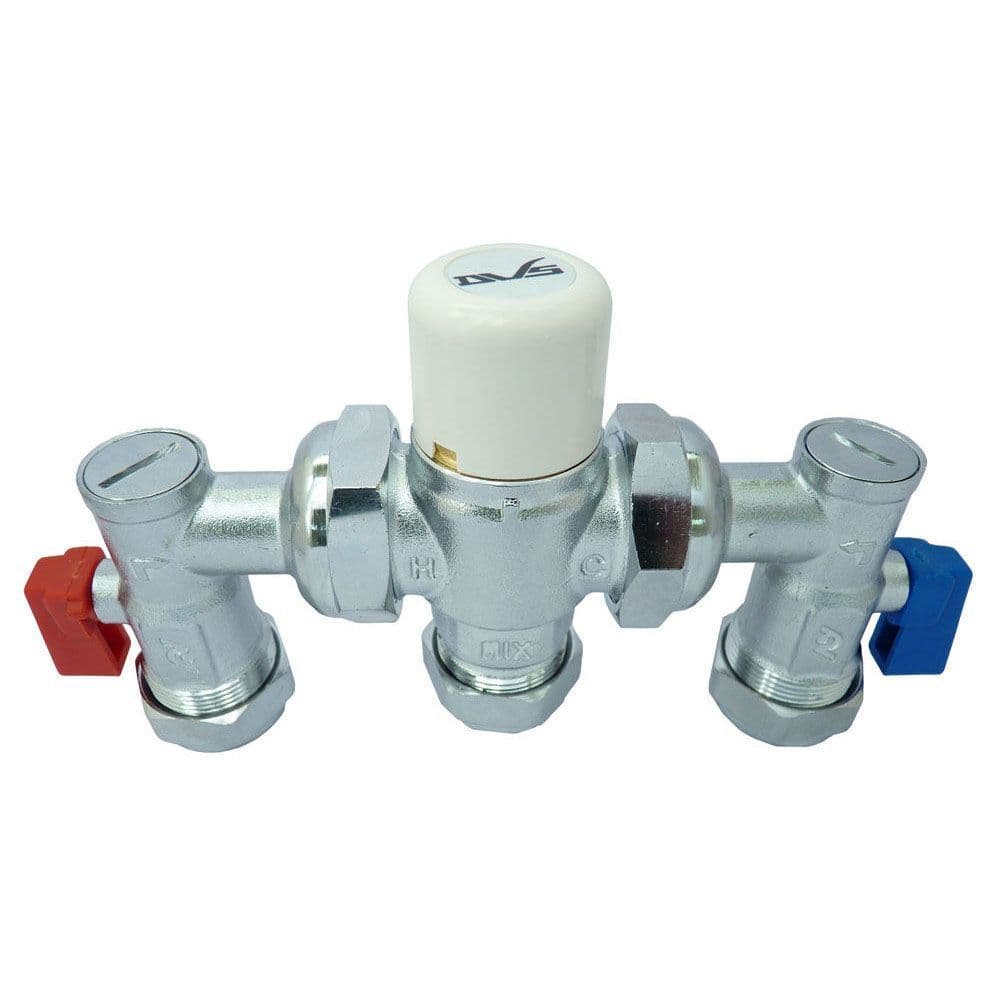

| AC17-047 15/22mm Thermostatic Mixing Valve |
Adjustable outlet temperature range of 38 to 46°C |
Programmable Wave-On Sensor Kit
| AC01-001 Handheld Programmer |
For setting-up and configuration of programmable sensors |
| WC01-023 WC Flush Valve |
|
| WC00-012 WC Flush Valve Control Box |
Low Voltage model |
| AC02-037 WC Programmable Wave-On Sensor |
|
| AT00-003 Basin Two Station Mains Kit |
Includes 2 basin solenoid valves |
| AC02-024 Blue Cold Water Programmable Wave-On Sensor |
|
| AC02-025 Red Hot Water Programmable Wave-On Sensor |
Toilet
Basin
Toilet Specification
Toilet CAD Drawing
Toilet RFA BIM Files
Toilet Installation Guide
Basin Specification
Basin CAD Drawing
